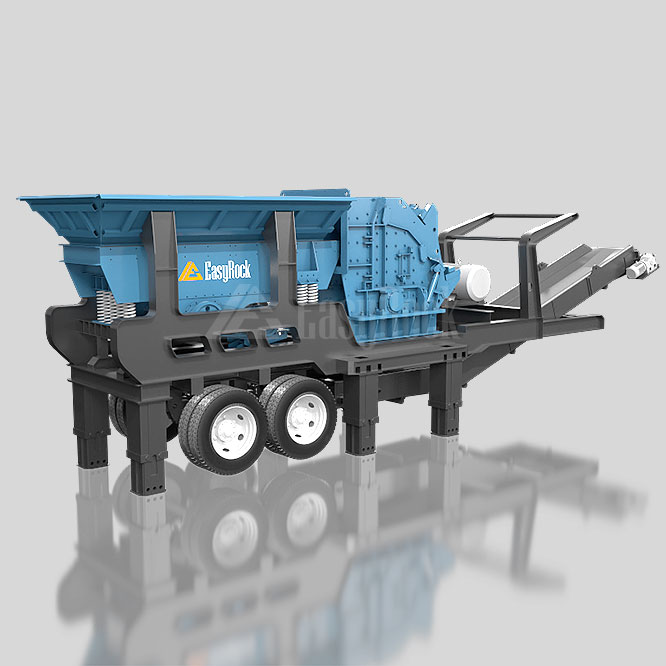

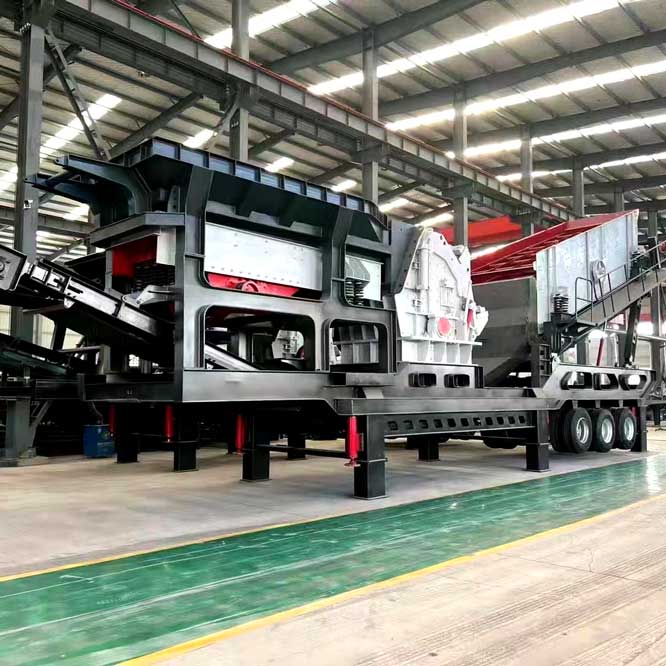

Mobile tire impact crusher application range:
Metal and non-metallic minerals, cement, sand and gravel, metallurgy, construction waste treatment and other industries
Mobile tire impact crusher is suitable for materials:
various metal and non-metallic ores, rocks, etc.
Advantages of mobile tire impact crusher:
- It can be hoisted and transported as a whole, reducing disassembly time and installation time.
- Reduce civil engineering, no foundation required or simple foundation installation on site.
- Save area, reduce the floor space of the overall production line, and save customers’ site investment.
- The product has excellent particle shape and is cubic.
- Integrated control, optional production line centralized control, to achieve integrated control of the entire production line.
- Convenient and flexible, the production line configuration can be adjusted at any time according to changes in on-site working conditions (increase or decrease, or even replace equipment).
- There are various combinations, and you can choose different types of crusher hosts according to your crushing needs, such as jaw crusher, hammer crusher, impact crusher, screening, etc.
- Flexible mobility
- Strong adaptability and flexible configuration
- Reduce material transportation costs
- The operation is direct and effective
- Adaptable host device switching to meet customer’s personalized needs
- Flexible parking function, quickly enter working mode
model | PF-1007 | PF-1010 | PF-1210 | PF-1214 | PF-1315 | PF-1515 |
---|---|---|---|---|---|---|
Processing capacity (t/h) | 37-50 | 55-80 | 60-120 | 130-180 | 150-220 | 200-260 |
Power (kw) | 45+5.5+5.5 | 75+7.5+7.5 | 110+11+5.5 | 132+11+5.5 | 200+15+7.5 | 260+15+11 |
impact crusher | PF-1007 | PF-1010 | PF-1210 | PF-1214 | PF-1315 | PF-1515 |
Vibrating feeder | GZD-850×3000 | GZD-900×3000 | GZD-960×3800 | GZD-960×3800 | GZD-1100×4200 | GZD-11×4200 |
Outfeed conveyor | 600×8000 | 800×10000 | 800×10000 | 800×10000 | 1000×10000 | 1200×12000 |
